1100 SERIES RIGHT ANGLE HEATSHRINK SHAPES WITH RIB (VG STYLE)

 Right-Angle Shapes With Rib VG-Style

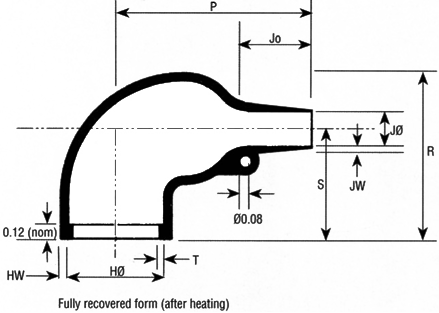

This style provides strain relief for harness systems when used in conjunction with a circular grooved adaptor.

For VG shapes according to T07 add ‘P’ after Hellermann part number.

Dimensions apply to all materials unless otherwise indicated and are in inches.

PLEASE NOTE: When ordering parts with L material, the modification # changes, due to expansion detail changes. Please consult main office for correct call-out.

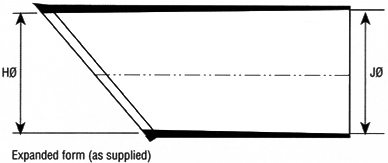

Item#Expanded (Min) HExpanded (Min) JP+/-10%R+/-10%Material
1152-4-J0.94 0.94 1.02 0.98 Flexible Flame Retarded Polyolefin
1152-4-B70.94 0.94 1.02 0.98 Semi-Rigid Flame Retarded Polyolefin
1152-4-G0.94 0.94 1.02 0.98 Fluid Resistant Flame Retarded Elastomer
1152-4-H0.94 0.94 1.02 0.98 Flexible Zero-Hal Limited Fire Hazard Material
1152-4-L0.94 0.94 1.02 0.98 Flexible Flame Retarded Fluro-Elastomer
1154-4-J1.18 1.18 1.26 1.06 Flexible Flame Retarded Polyolefin
1154-4-B71.18 1.18 1.26 1.06 Semi-Rigid Flame Retarded Polyolefin
1154-4-G1.18 1.18 1.26 1.06 Fluid Resistant Flame Retarded Elastomer
1154-4-H1.18 1.18 1.26 1.06 Flexible Zero-Hal Limited Fire Hazard Material
1154-4-L1.18 1.18 1.26 1.06 Flexible Flame Retarded Fluro-Elastomer
1155-4-J1.22 1.22 1.57 1.22 Flexible Flame Retarded Polyolefin
1155-4-B71.22 1.22 1.57 1.22 Semi-Rigid Flame Retarded Polyolefin
1155-4-G1.22 1.22 1.57 1.22 Fluid Resistant Flame Retarded Elastomer
1155-4-H1.22 1.22 1.57 1.22 Flexible Zero-Hal Limited Fire Hazard Material
1155-4-L1.22 1.22 1.57 1.22 Flexible Flame Retarded Fluro-Elastomer
1156-4-J1.42 1.42 1.81 1.50 Flexible Flame Retarded Polyolefin
1156-4-B71.42 1.42 1.81 1.50 Semi-Rigid Flame Retarded Polyolefin
1156-4-G1.42 1.42 1.81 1.50 Fluid Resistant Flame Retarded Elastomer
1156-4-H1.42 1.42 1.81 1.50 Flexible Zero-Hal Limited Fire Hazard Material
1156-4-L1.42 1.42 1.81 1.50 Flexible Flame Retarded Fluro-Elastomer
1157-4-J1.69 1.69 2.17 1.77 Flexible Flame Retarded Polyolefin
1157-4-B71.69 1.69 2.17 1.77 Semi-Rigid Flame Retarded Polyolefin
1157-4-G1.69 1.69 2.17 1.77 Fluid Resistant Flame Retarded Elastomer
1157-4-H1.69 1.69 2.17 1.77 Flexible Zero-Hal Limited Fire Hazard Material
1157-4-L1.69 1.69 2.17 1.77 Flexible Flame Retarded Fluro-Elastomer
1152-4-J0.94 0.94 1.02 0.98 Flexible Flame Retarded Polyolefin
1152-4-B70.94 0.94 1.02 0.98 Semi-Rigid Flame Retarded Polyolefin
1152-4-G0.94 0.94 1.02 0.98 Fluid Resistant Flame Retarded Elastomer
1152-4-H0.94 0.94 1.02 0.98 Flexible Zero-Hal Limited Fire Hazard Material
1152-4-L0.94 0.94 1.02 0.98 Flexible Flame Retarded Fluro-Elastomer
1154-4-J1.18 1.18 1.26 1.06 Flexible Flame Retarded Polyolefin
1154-4-B71.18 1.18 1.26 1.06 Semi-Rigid Flame Retarded Polyolefin
1154-4-G1.18 1.18 1.26 1.06 Fluid Resistant Flame Retarded Elastomer
1154-4-H1.18 1.18 1.26 1.06 Flexible Zero-Hal Limited Fire Hazard Material
1154-4-L1.18 1.18 1.26 1.06 Flexible Flame Retarded Fluro-Elastomer
1155-4-J1.22 1.22 1.57 1.22 Flexible Flame Retarded Polyolefin
1155-4-B71.22 1.22 1.57 1.22 Semi-Rigid Flame Retarded Polyolefin
1155-4-G1.22 1.22 1.57 1.22 Fluid Resistant Flame Retarded Elastomer
1155-4-H1.22 1.22 1.57 1.22 Flexible Zero-Hal Limited Fire Hazard Material
1155-4-L1.22 1.22 1.57 1.22 Flexible Flame Retarded Fluro-Elastomer
1156-4-J1.42 1.42 1.81 1.50 Flexible Flame Retarded Polyolefin
1156-4-B71.42 1.42 1.81 1.50 Semi-Rigid Flame Retarded Polyolefin
1156-4-G1.42 1.42 1.81 1.50 Fluid Resistant Flame Retarded Elastomer
1156-4-H1.42 1.42 1.81 1.50 Flexible Zero-Hal Limited Fire Hazard Material
1156-4-L1.42 1.42 1.81 1.50 Flexible Flame Retarded Fluro-Elastomer
1157-4-J1.69 1.69 2.17 1.77 Flexible Flame Retarded Polyolefin
1157-4-B71.69 1.69 2.17 1.77 Semi-Rigid Flame Retarded Polyolefin
1158-4-J2.36 2.36 3.15 2.13 Flexible Flame Retarded Polyolefin
1158-4-B72.36 2.36 3.15 2.13 Semi-Rigid Flame Retarded Polyolefin
1158-4-G2.36 2.36 3.15 2.13 Fluid Resistant Flame Retarded Elastomer
1158-4-H2.36 2.36 3.15 2.13 Flexible Zero-Hal Limited Fire Hazard Material
1158-4-L2.36 2.36 3.15 2.13 Flexible Flame Retarded Fluro-Elastomer
1159-4-J2.60 2.60 4.25 2.68 Flexible Flame Retarded Polyolefin
1159-4-B72.60 2.60 4.25 2.68 Semi-Rigid Flame Retarded Polyolefin
1159-4-G2.60 2.60 4.25 2.68 Fluid Resistant Flame Retarded Elastomer
1159-4-H2.60 2.60 4.25 2.68 Flexible Zero-Hal Limited Fire Hazard Material
1159-4-L2.60 2.60 4.25 2.68 Flexible Flame Retarded Fluro-Elastomer
1160-4-J3.23 3.23 4.65 3.31 Flexible Flame Retarded Polyolefin
1160-4-B73.23 3.23 4.65 3.31 Semi-Rigid Flame Retarded Polyolefin
1160-4-G3.23 3.23 4.65 3.31 Fluid Resistant Flame Retarded Elastomer
1160-4-H3.23 3.23 4.65 3.31 Flexible Zero-Hal Limited Fire Hazard Material
1160-4-L3.23 3.23 4.65 3.31 Flexible Flame Retarded Fluro-Elastomer
