1200 Series Off-Set T Heatshrink Shapes

  • 1200 SERIES OFF-SET T HEATSHRINK SHAPES

            Off-Set T Shapes

This style provides strain relief, sealing and mechanical protection on cable harnesses.

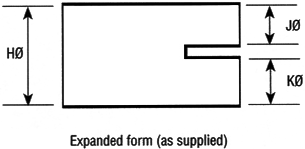

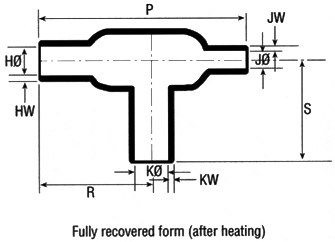

Dimensions apply to all materials unless otherwise indicated and are in inches.

PLEASE NOTE: When ordering parts with L material, the modification # changes, due to expansion detail changes. Please consult main office for correct call-out.

Item#Expanded (Min) HExpanded (Min) JP+/-10%R+/-10%Material
1217-1-J0.39 0.24 2.24 0.75 Flexible Flame Retarded Polyolefin
1217-1-B70.39 0.24 2.24 0.75 Semi-Rigid Flame Retarded Polyolefin
1217-1-G0.39 0.24 2.24 0.75 Fluid Resistant Flame Retarded Elastomer
1217-1-H0.39 0.24 2.24 0.75 Flexible Zero-Hal Limited Fire Hazard Material
1217-1-L0.39 0.24 2.24 0.75 Flexible Flame Retarded Fluro-Elastomer
1222-1-J1.22 0.71 3.62 2.05 Flexible Flame Retarded Polyolefin
1222-1-B71.22 0.71 3.62 2.05 Semi-Rigid Flame Retarded Polyolefin
1222-1-G1.22 0.71 3.62 2.05 Fluid Resistant Flame Retarded Elastomer
1222-1-H1.22 0.71 3.62 2.05 Flexible Zero-Hal Limited Fire Hazard Material
1222-1-L1.22 0.71 3.62 2.05 Flexible Flame Retarded Fluro-Elastomer
1223-1-J1.16 0.38 3.67 2.23 Flexible Flame Retarded Polyolefin
1223-1-B71.16 0.38 3.67 2.23 Semi-Rigid Flame Retarded Polyolefin
1223-1-G1.16 0.38 3.67 2.23 Fluid Resistant Flame Retarded Elastomer
1223-1-H1.16 0.38 3.67 2.23 Flexible Zero-Hal Limited Fire Hazard Material
1223-1-L1.16 0.38 3.67 2.23 Flexible Flame Retarded Fluro-Elastomer
1217-1-J0.39 0.24 2.24 0.75 Flexible Flame Retarded Polyolefin
1217-1-B70.39 0.24 2.24 0.75 Semi-Rigid Flame Retarded Polyolefin
1217-1-G0.39 0.24 2.24 0.75 Fluid Resistant Flame Retarded Elastomer
1217-1-H0.39 0.24 2.24 0.75 Flexible Zero-Hal Limited Fire Hazard Material
1217-1-L0.39 0.24 2.24 0.75 Flexible Flame Retarded Fluro-Elastomer
1222-1-J1.22 0.71 3.62 2.05 Flexible Flame Retarded Polyolefin
1222-1-B71.22 0.71 3.62 2.05 Semi-Rigid Flame Retarded Polyolefin
1222-1-G1.22 0.71 3.62 2.05 Fluid Resistant Flame Retarded Elastomer
1222-1-H1.22 0.71 3.62 2.05 Flexible Zero-Hal Limited Fire Hazard Material
1222-1-L1.22 0.71 3.62 2.05 Flexible Flame Retarded Fluro-Elastomer
1223-1-J1.16 0.38 3.67 2.23 Flexible Flame Retarded Polyolefin
1223-1-B71.16 0.38 3.67 2.23 Semi-Rigid Flame Retarded Polyolefin
1223-1-G1.16 0.38 3.67 2.23 Fluid Resistant Flame Retarded Elastomer
1223-1-H1.16 0.38 3.67 2.23 Flexible Zero-Hal Limited Fire Hazard Material
1223-1-L1.16 0.38 3.67 2.23 Flexible Flame Retarded Fluro-Elastomer
1217-1-J0.39 0.24 2.24 0.75 Flexible Flame Retarded Polyolefin
1217-1-B70.39 0.24 2.24 0.75 Semi-Rigid Flame Retarded Polyolefin
1217-1-G0.39 0.24 2.24 0.75 Fluid Resistant Flame Retarded Elastomer
1217-1-H0.39 0.24 2.24 0.75 Flexible Zero-Hal Limited Fire Hazard Material
1217-1-L0.39 0.24 2.24 0.75 Flexible Flame Retarded Fluro-Elastomer
1222-1-J1.22 0.71 3.62 2.05 Flexible Flame Retarded Polyolefin
1222-1-B71.22 0.71 3.62 2.05 Semi-Rigid Flame Retarded Polyolefin
1222-1-G1.22 0.71 3.62 2.05 Fluid Resistant Flame Retarded Elastomer
1222-1-H1.22 0.71 3.62 2.05 Flexible Zero-Hal Limited Fire Hazard Material
1222-1-L1.22 0.71 3.62 2.05 Flexible Flame Retarded Fluro-Elastomer
1223-1-J1.16 0.38 3.67 2.23 Flexible Flame Retarded Polyolefin
1223-1-B71.16 0.38 3.67 2.23 Semi-Rigid Flame Retarded Polyolefin
