  • 200 SERIES 2-WAY OUTLET SHAPES LOW PROFILE HEATSHRINK SHAPES

 2-Way Outlet Shapes Low Profile

This style provides cable sealing strain relief and mechanical protection.

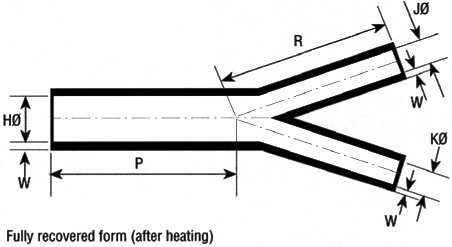

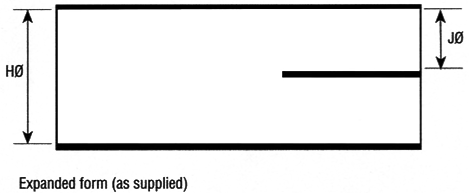

Dimensions apply to all materials unless otherwise indicated and are in inches.

PLEASE NOTE: When ordering parts with L material, the modification # changes, due to expansion detail changes. Please consult main office for correct call-out.

Item#Expanded (Min) HExpanded (Min) JExpanded (Min) KRecovered (Max) JMaterial
201-1-J0.75 0.55 0.55 0.25 Flexible Flame Retarded Polyolefin
201-1-B70.75 0.55 0.55 0.25 Semi-Rigid Flame Retarded Polyolefin
201-1-G0.75 0.55 0.55 0.25 Fluid Resistant Flame Retarded Elastomer
201-1-H0.75 0.55 0.55 0.25 Flexible Zero-Hal Limited Fire Hazard Material
201-1-L0.75 0.55 0.55 0.25 Flexible Flame Retarded Fluro-Elastomer
201-3-J1.00 0.55 0.55 0.25 Flexible Flame Retarded Polyolefin
201-3-B71.00 0.55 0.55 0.25 Semi-Rigid Flame Retarded Polyolefin
201-3-G1.00 0.55 0.55 0.25 Fluid Resistant Flame Retarded Elastomer
201-3-H1.00 0.55 0.55 0.25 Flexible Zero-Hal Limited Fire Hazard Material
201-3-L1.00 0.55 0.55 0.25 Flexible Flame Retarded Fluro-Elastomer
202-1-J0.75 0.30 0.30 0.15 Flexible Flame Retarded Polyolefin
202-1-B70.75 0.30 0.30 0.15 Semi-Rigid Flame Retarded Polyolefin
202-1-G0.75 0.30 0.30 0.15 Fluid Resistant Flame Retarded Elastomer
202-1-H0.75 0.30 0.30 0.15 Flexible Zero-Hal Limited Fire Hazard Material
202-1-L0.75 0.30 0.30 0.15 Flexible Flame Retarded Fluro-Elastomer
202-2-J0.79 0.49 0.49 0.15 Flexible Flame Retarded Polyolefin
202-2-B70.79 0.49 0.49 0.15 Semi-Rigid Flame Retarded Polyolefin
202-2-G0.79 0.49 0.49 0.15 Fluid Resistant Flame Retarded Elastomer
202-2-H0.79 0.49 0.49 0.15 Flexible Zero-Hal Limited Fire Hazard Material
202-2-L0.79 0.49 0.49 0.15 Flexible Flame Retarded Fluro-Elastomer
202-3-J0.96 0.63 0.63 0.15 Flexible Flame Retarded Polyolefin
202-3-B70.96 0.63 0.63 0.15 Semi-Rigid Flame Retarded Polyolefin
202-3-G0.96 0.63 0.63 0.15 Fluid Resistant Flame Retarded Elastomer
202-3-H0.96 0.63 0.63 0.15 Flexible Zero-Hal Limited Fire Hazard Material
202-3-L0.96 0.63 0.63 0.15 Flexible Flame Retarded Fluro-Elastomer
