2000 Series Right Angle Cross Heatshrink Shapes
Two Ordering Options
- 2000 SERIES RIGHT ANGLE CROSS HEATSHRINK SHAPES

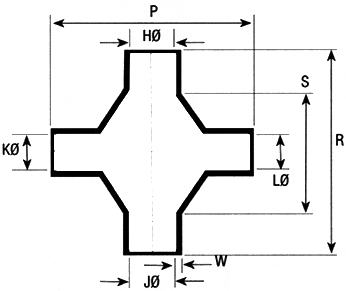

Right-Angle Cross Shape
This style provides sealing, mechanical protection, allowing wires to be routed in four 90º directions.
Dimensions apply to all materials unless otherwise indicated and are in inches.
PLEASE NOTE: When ordering parts with L material, the modification # changes, due to expansion detail changes. Please consult main office for correct call-out.
| Item# | Expanded (Min) H | Expanded (Min) J | P+/-10% | R+/-10% | Material |
|---|---|---|---|---|---|
| 2003-1-J | 0.76 | 0.76 | 1.50 | 1.50 | Flexible Flame Retarded Polyolefin |
| 2003-1-B7 | 0.76 | 0.76 | 1.50 | 1.50 | Semi-Rigid Flame Retarded Polyolefin |
| 2003-1-G | 0.76 | 0.76 | 1.50 | 1.50 | Fluid Resistant Flame Retarded Elastomer |
| 2003-1-H | 0.76 | 0.76 | 1.50 | 1.50 | Flexible Zero-Hal Limited Fire Hazard Material |
| 2003-1-L | 0.76 | 0.76 | 1.50 | 1.50 | Flexible Flame Retarded Fluro-Elastomer |
