300 Series 3-way Outlet Heatshrink Shapes (In Line)

  • 300 SERIES 3-WAY OUTLET HEATSHRINK SHAPES (IN LINE)

3-Way Outlet Shapes In Line

This style provides cable sealing strain relief and mechanical protection. Covers a wide range of cable diameters. Ideal for power and signal.

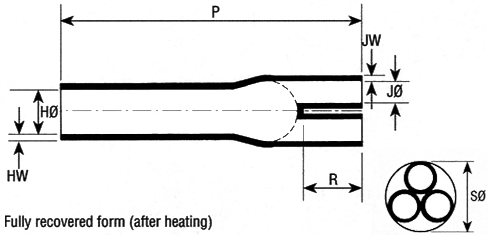

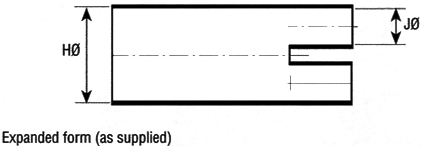

Dimensions apply to all materials unless otherwise indicated and are in inches.

PLEASE NOTE: When ordering parts with L material, the modification # changes, due to expansion detail changes. Please consult main office for correct call-out.

Item#Expanded (Min) HExpanded (Min) JP+/-10%R+/-10%Material
318-2-J0.98 0.35 3.01 0.79 Flexible Flame Retarded Polyolefin
318-2-B70.98 0.35 3.01 0.79 Semi-Rigid Flame Retarded Polyolefin
318-2-G0.98 0.35 3.01 0.79 Fluid Resistant Flame Retarded Elastomer
318-2-H0.98 0.35 3.01 0.79 Flexible Zero-Hal Limited Fire Hazard Material
318-2-L0.98 0.35 3.01 0.79 Flexible Flame Retarded Fluro-Elastomer
339-2-J1.50 0.65 4.47 2.46 Flexible Flame Retarded Polyolefin
339-2-B71.50 0.65 4.47 2.46 Semi-Rigid Flame Retarded Polyolefin
339-2-G1.50 0.65 4.47 2.46 Fluid Resistant Flame Retarded Elastomer
339-2-H1.50 0.65 4.47 2.46 Flexible Zero-Hal Limited Fire Hazard Material
339-2-L1.50 0.65 4.47 2.46 Flexible Flame Retarded Fluro-Elastomer
319-2-J1.22 0.59 3.68 1.12 Flexible Flame Retarded Polyolefin
319-2-B71.22 0.59 3.68 1.12 Semi-Rigid Flame Retarded Polyolefin
319-2-G1.22 0.59 3.68 1.12 Fluid Resistant Flame Retarded Elastomer
319-2-H1.22 0.59 3.68 1.12 Flexible Zero-Hal Limited Fire Hazard Material
319-2-L1.22 0.59 3.68 1.12 Flexible Flame Retarded Fluro-Elastomer
320-1-J2.20 1.20 7.09 1.73 Flexible Flame Retarded Polyolefin
320-1-B72.20 1.20 7.09 1.73 Semi-Rigid Flame Retarded Polyolefin
320-1-G2.20 1.20 7.09 1.73 Fluid Resistant Flame Retarded Elastomer
320-1-H2.20 1.20 7.09 1.73 Flexible Zero-Hal Limited Fire Hazard Material
320-1-L2.20 1.20 7.09 1.73 Flexible Flame Retarded Fluro-Elastomer
328-2-J1.70 0.82 3.90 1.34 Flexible Flame Retarded Polyolefin
328-2-B71.70 0.82 3.90 1.34 Semi-Rigid Flame Retarded Polyolefin
328-2-G1.70 0.82 3.90 1.34 Fluid Resistant Flame Retarded Elastomer
328-2-H1.70 0.82 3.90 1.34 Flexible Zero-Hal Limited Fire Hazard Material
328-2-L1.70 0.82 3.90 1.34 Flexible Flame Retarded Fluro-Elastomer
324-1-J3.54 1.38 7.87 1.97 Flexible Flame Retarded Polyolefin
324-1-B73.54 1.38 7.87 1.97 Semi-Rigid Flame Retarded Polyolefin
324-1-G3.54 1.38 7.87 1.97 Fluid Resistant Flame Retarded Elastomer
324-1-H3.54 1.38 7.87 1.97 Flexible Zero-Hal Limited Fire Hazard Material
324-1-L3.54 1.38 7.87 1.97 Flexible Flame Retarded Fluro-Elastomer
316-1-J4.33 1.57 7.01 1.50 Flexible Flame Retarded Polyolefin
316-1-B74.33 1.57 7.01 1.50 Semi-Rigid Flame Retarded Polyolefin
316-1-G4.33 1.57 7.01 1.50 Fluid Resistant Flame Retarded Elastomer
316-1-H4.33 1.57 7.01 1.50 Flexible Zero-Hal Limited Fire Hazard Material
316-1-L4.33 1.57 7.01 1.50 Flexible Flame Retarded Fluro-Elastomer
316-2-J2.83 1.46 7.01 1.50 Flexible Flame Retarded Polyolefin
316-2-B72.83 1.46 7.01 1.50 Semi-Rigid Flame Retarded Polyolefin
316-2-G2.83 1.46 7.01 1.50 Fluid Resistant Flame Retarded Elastomer
316-2-H2.83 1.46 7.01 1.50 Flexible Zero-Hal Limited Fire Hazard Material
316-2-L2.83 1.46 7.01 1.50 Flexible Flame Retarded Fluro-Elastomer
342-1-J4.33 1.57 9.06 1.77 Flexible Flame Retarded Polyolefin
342-1-B74.33 1.57 9.06 1.77 Semi-Rigid Flame Retarded Polyolefin
342-1-G4.33 1.57 9.06 1.77 Fluid Resistant Flame Retarded Elastomer
342-1-H4.33 1.57 9.06 1.77 Flexible Zero-Hal Limited Fire Hazard Material
342-1-L4.33 1.57 9.06 1.77 Flexible Flame Retarded Fluro-Elastomer
330-2-J2.40 1.25 5.69 1.79 Flexible Flame Retarded Polyolefin
330-2-B72.40 1.25 5.69 1.79 Semi-Rigid Flame Retarded Polyolefin
330-2-G2.40 1.25 5.69 1.79 Fluid Resistant Flame Retarded Elastomer
330-2-H2.40 1.25 5.69 1.79 Flexible Zero-Hal Limited Fire Hazard Material
330-2-L2.40 1.25 5.69 1.79 Flexible Flame Retarded Fluro-Elastomer
340-2-J3.20 1.40 5.69 1.79 Flexible Flame Retarded Polyolefin
340-2-B73.20 1.40 5.69 1.79 Semi-Rigid Flame Retarded Polyolefin
340-2-G3.20 1.40 5.69 1.79 Fluid Resistant Flame Retarded Elastomer
340-2-H3.20 1.40 5.69 1.79 Flexible Zero-Hal Limited Fire Hazard Material
340-2-L3.20 1.40 5.69 1.79 Flexible Flame Retarded Fluro-Elastomer
341-2-J4.92 2.00 11.14 2.80 Flexible Flame Retarded Polyolefin
341-2-B74.92 2.00 11.14 2.80 Semi-Rigid Flame Retarded Polyolefin
341-2-G4.92 2.00 11.14 2.80 Fluid Resistant Flame Retarded Elastomer
341-2-H4.92 2.00 11.14 2.80 Flexible Zero-Hal Limited Fire Hazard Material
341-2-L4.92 2.00 11.14 2.80 Flexible Flame Retarded Fluro-Elastomer
323-1-J4.72 2.36 11.81 3.54 Flexible Flame Retarded Polyolefin
323-1-B74.72 2.36 11.81 3.54 Semi-Rigid Flame Retarded Polyolefin
323-1-G4.72 2.36 11.81 3.54 Fluid Resistant Flame Retarded Elastomer
323-1-H4.72 2.36 11.81 3.54 Flexible Zero-Hal Limited Fire Hazard Material
323-1-L4.72 2.36 11.81 3.54 Flexible Flame Retarded Fluro-Elastomer
