  • 300 SERIES 3-WAY OUTLET HEATSHRINK SHAPES (VG STYLE)

3-Way Outlet Shapes VG-Style

This style provides cable sealing strain relief and mechanical protection.

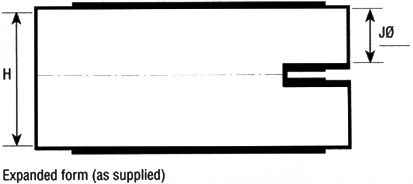

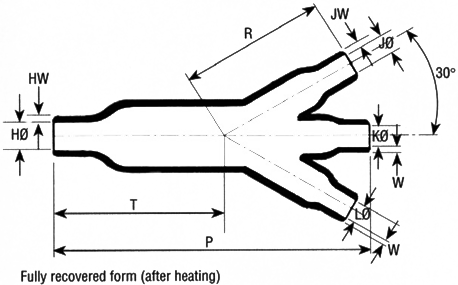

Dimensions apply to all materials unless otherwise indicated and are in inches.

PLEASE NOTE: When ordering parts with L material, the modification # changes, due to expansion detail changes. Please consult main office for correct call-out.

Item#Expanded (Min) HExpanded (Min) JP+/-10%R+/-10%Material
334-1-J0.52 0.26 1.82 1.00 Flexible Flame Retarded Polyolefin
334-1-B70.52 0.26 1.82 1.00 Semi-Rigid Flame Retarded Polyolefin
334-1-G0.52 0.26 1.82 1.00 Fluid Resistant Flame Retarded Elastomer
334-1-H0.52 0.26 1.82 1.00 Flexible Zero-Hal Limited Fire Hazard Material
334-1-L0.52 0.26 1.82 1.00 Flexible Flame Retarded Fluro-Elastomer
306-1-J0.51 0.26 1.81 0.98 Flexible Flame Retarded Polyolefin
306-1-B70.51 0.26 1.81 0.98 Semi-Rigid Flame Retarded Polyolefin
306-1-G0.51 0.26 1.81 0.98 Fluid Resistant Flame Retarded Elastomer
306-1-H0.51 0.26 1.81 0.98 Flexible Zero-Hal Limited Fire Hazard Material
306-1-L0.51 0.26 1.81 0.98 Flexible Flame Retarded Fluro-Elastomer
304-1-J1.06 0.51 3.66 1.97 Flexible Flame Retarded Polyolefin
304-1-B71.06 0.51 3.66 1.97 Semi-Rigid Flame Retarded Polyolefin
304-1-G1.06 0.51 3.66 1.97 Fluid Resistant Flame Retarded Elastomer
304-1-H1.06 0.51 3.66 1.97 Flexible Zero-Hal Limited Fire Hazard Material
304-1-L1.06 0.51 3.66 1.97 Flexible Flame Retarded Fluro-Elastomer
310-1-J1.52 0.75 5.31 2.91 Flexible Flame Retarded Polyolefin
310-1-B71.52 0.75 5.31 2.91 Semi-Rigid Flame Retarded Polyolefin
310-1-G1.52 0.75 5.31 2.91 Fluid Resistant Flame Retarded Elastomer
310-1-H1.52 0.75 5.31 2.91 Flexible Zero-Hal Limited Fire Hazard Material
310-1-L1.52 0.75 5.31 2.91 Flexible Flame Retarded Fluro-Elastomer
311-1-J2.19 1.06 7.56 4.06 Flexible Flame Retarded Polyolefin
311-1-B72.19 1.06 7.56 4.06 Semi-Rigid Flame Retarded Polyolefin
311-1-G2.19 1.06 7.56 4.06 Fluid Resistant Flame Retarded Elastomer
311-1-H2.19 1.06 7.56 4.06 Flexible Zero-Hal Limited Fire Hazard Material
311-1-L2.19 1.06 7.56 4.06 Flexible Flame Retarded Fluro-Elastomer
