  • 412H 622 TO 625 TRANSITION T-90º HEATSHRINK SHAPES LOW PROFILE

Transition, Side Breakout, Low Profile.

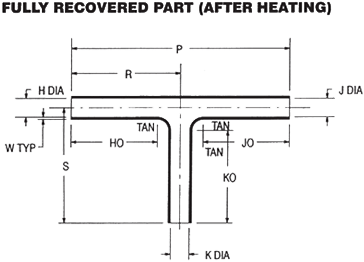

This style provides connector cable strain relief and is used in conjunction with a circular grooved adapter.

All dimensions are in inches. All angles are in degrees.

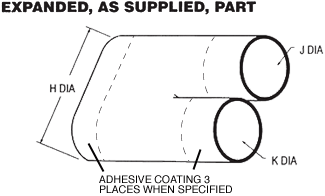

Dimensions in table: X = Expanded (minimum), R = Recovered (maximum)

Larger expansions available on request for -6 material.

Item#H Dia. (Min X)H Dia. (Max R)HO+/-10% RW Nom RMaterial
412H622-60.78 0.26 1.00 0.04 Flexible Flame Retardant Polyolefin
412H622-80.78 0.26 1.00 0.04 Viton-Polyester Polymer Blend
412H622-90.78 0.26 1.00 0.04 Modified Elastomer Blend
412H623-61.35 0.45 1.62 0.05 Flexible Flame Retardant Polyolefin
412H623-81.35 0.45 1.62 0.05 Viton-Polyester Polymer Blend
412H623-91.35 0.45 1.62 0.05 Modified Elastomer Blend
412H624-62.37 0.79 2.50 0.06 Flexible Flame Retardant Polyolefin
412H624-82.37 0.79 2.50 0.06 Viton-Polyester Polymer Blend
412H624-92.37 0.79 2.50 0.06 Modified Elastomer Blend
412H625-63.28 1.31 3.50 0.07 Flexible Flame Retardant Polyolefin
412H625-83.28 1.31 3.50 0.07 Viton-Polyester Polymer Blend
412H625-93.28 1.31 3.50 0.07 Modified Elastomer Blend
