500 Series 5-way Outlet Heatshrink Shapes (In Line)

  • 500 SERIES 5-WAY OUTLET HEATSHRINK SHAPES (IN LINE)

5-Way Outlet Shape In-Line

This style provides cable sealing, strain relief and mechanical protection. Ideal for power and signal applications.

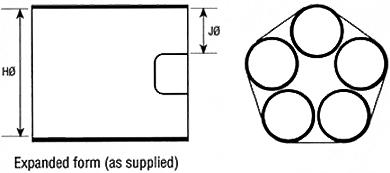

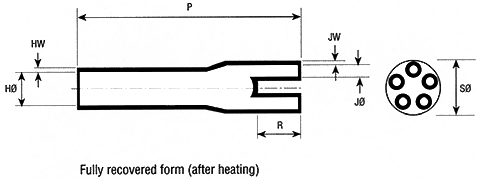

Dimensions apply to all materials unless otherwise indicated and are in inches.

PLEASE NOTE: When ordering parts with L material, the modification # changes, due to expansion detail changes. Please consult main office for correct call-out.

Item#Expanded (Min) HExpanded (Min) JS NomP+/-10%Material
508-1-J2.36 1.18 1.89 7.09 Flexible Flame Retarded Polyolefin
508-1-B72.36 1.18 1.89 7.09 Semi-Rigid Flame Retarded Polyolefin
508-1-G2.36 1.18 1.89 7.09 Fluid Resistant Flame Retarded Elastomer
508-1-H2.36 1.18 1.89 7.09 Flexible Zero-Hal Limited Fire Hazard Material
508-1-L2.36 1.18 1.89 7.09 Flexible Flame Retarded Fluro-Elastomer
