573H 532 to 535 Transition Heatshrink Shapes (1 to 3 cables) Low Profile

  • 573H 532 TO 535 TRANSITION HEATSHRINK SHAPES (1 TO 3 CABLES) LOW PROFILE

Transition, 1 to 3 Cables, Low Profile

This style provides strain relief, sealing and mechanical protection on cable harness breakouts or transitions.

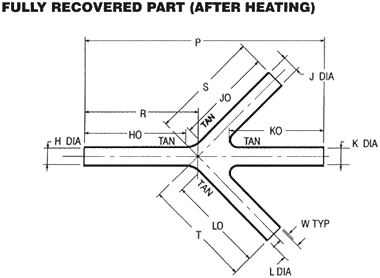

All dimensions are in inches. All angles are in degrees.

Dimensions in table: X = Expanded (minimum), R = Recovered (maximum)

Larger expansions available on request for -6 material.

Item#H Dia. (Min X)H Dia. (Max R)HO+/-15% RP Nom RMaterial
573H532-60.78 0.26 1.00 3.38 Flexible Flame Retardant Polyolefin
573H532-80.78 0.26 1.00 3.38 Viton-Polyester Polymer Blend
573H532-90.78 0.26 1.00 3.38 Modified Elastomer Blend
573H533-61.35 0.45 1.62 5.34 Flexible Flame Retardant Polyolefin
573H533-81.35 0.45 1.62 5.34 Viton-Polyester Polymer Blend
573H533-91.35 0.45 1.62 5.34 Modified Elastomer Blend
573H534-62.37 0.79 2.50 8.16 Flexible Flame Retardant Polyolefin
573H534-82.37 0.79 2.50 8.16 Viton-Polyester Polymer Blend
573H534-92.37 0.79 2.50 8.16 Modified Elastomer Blend
573H535-63.93 1.31 3.50 11.60 Flexible Flame Retardant Polyolefin
573H535-83.93 1.31 3.50 11.60 Viton-Polyester Polymer Blend
573H535-93.93 1.31 3.50 11.60 Modified Elastomer Blend
573H534-01-62.37 0.79 1.09 5.34 Flexible Flame Retardant Polyolefin
573H534-01-82.37 0.79 1.09 5.34 Viton-Polyester Polymer Blend
573H534-01-92.37 0.79 1.09 5.34 Modified Elastomer Blend
573H535-01-63.93 1.31 1.79 8.16 Flexible Flame Retardant Polyolefin
573H535-01-83.93 1.31 1.79 8.16 Viton-Polyester Polymer Blend
573H535-01-93.93 1.31 1.79 8.16 Modified Elastomer Blend
323-1-G4.72 2.36 11.81 3.54 Fluid Resistant Flame Retarded Elastomer
323-1-H4.72 2.36 11.81 3.54 Flexible Zero-Hal Limited Fire Hazard Material
323-1-L4.72 2.36 11.81 3.54 Flexible Flame Retarded Fluro-Elastomer
