600 series 6-way Outlet Heatshrink Shapes (In Line)

  • 600 SERIES 6-WAY OUTLET HEATSHRINK SHAPES (IN LINE)

6-Way Outlet Shape In-Line

This style provides cable sealing, strain relief and mechanical protection. Ideal for power and signal cables.

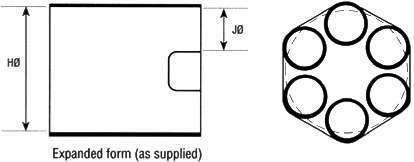

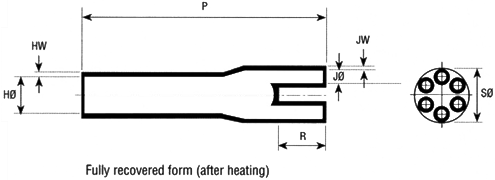

Dimensions apply to all materials unless otherwise indicated and are in inches.

PLEASE NOTE: When ordering parts with L material, the modification # changes, due to expansion detail changes. Please consult main office for correct call-out.

Item#Expanded (Min) HExpanded (Min) JS NomP+/-10%Material
609-1-J1.18 0.32 0.98 2.95 Flexible Flame Retarded Polyolefin
609-1-B71.18 0.32 0.98 2.95 Semi-Rigid Flame Retarded Polyolefin
609-1-G1.18 0.32 0.98 2.95 Fluid Resistant Flame Retarded Elastomer
609-1-H1.18 0.32 0.98 2.95 Flexible Zero-Hal Limited Fire Hazard Material
609-1-L1.18 0.32 0.98 2.95 Flexible Flame Retarded Fluro-Elastomer
608-1-J2.39 0.82 1.97 5.40 Flexible Flame Retarded Polyolefin
608-1-B72.39 0.82 1.97 5.40 Semi-Rigid Flame Retarded Polyolefin
608-1-G2.39 0.82 1.97 5.40 Fluid Resistant Flame Retarded Elastomer
608-1-H2.39 0.82 1.97 5.40 Flexible Zero-Hal Limited Fire Hazard Material
608-1-L2.39 0.82 1.97 5.40 Flexible Flame Retarded Fluro-Elastomer
