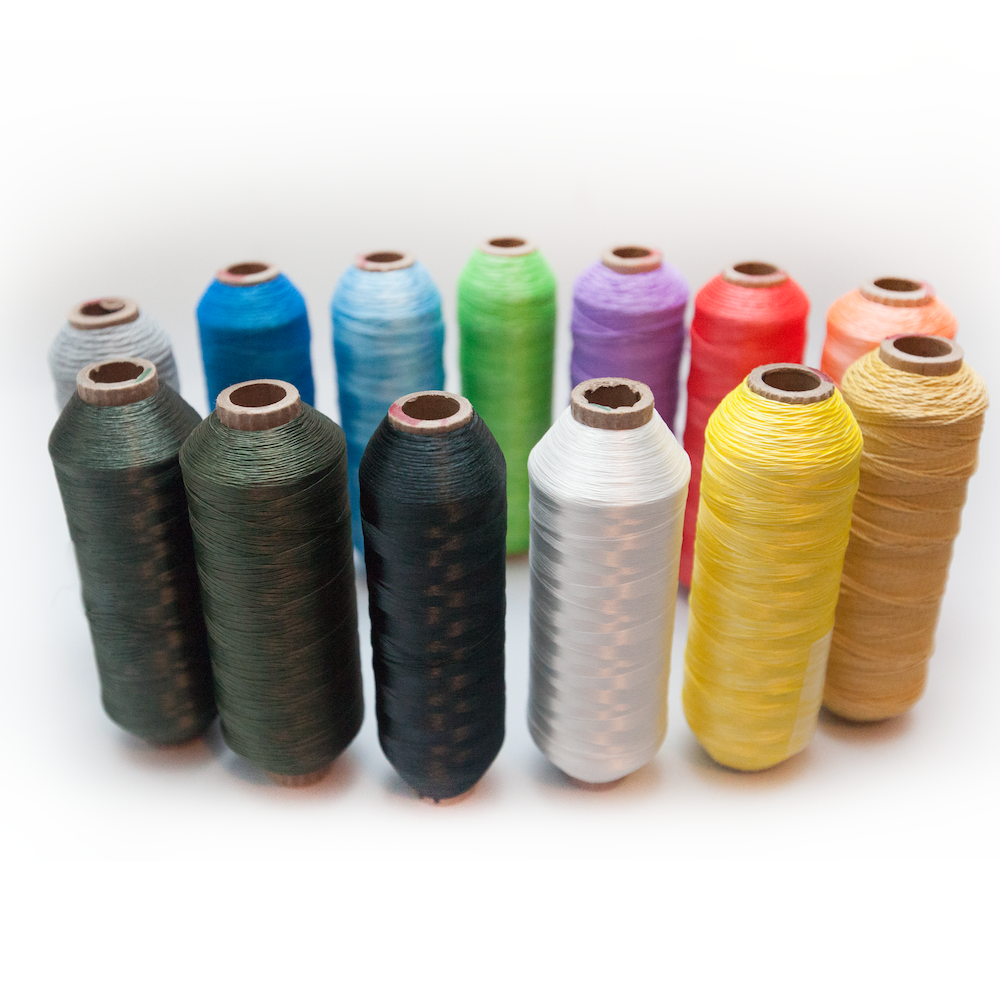

Nomex Braiding Yarn MIL-PRF-572 Type PAA Form Y
Two Ordering Options
Description:
Continuous Filament Nomex® yarn twisted to form an essentially round bundle. Material is available unbonded or bonded with a non-corrosive liquid nylon finish. Material is packaged on cardboard tubes or plastic ratchet bobbins for use on New England Butt #2 braiding machines. Other packages also available.
Standard Colors: Natural (off white) or Camouflage Green (Other colors are available in bond dyed form or with unbonded yarn in minimum dye lots)
Temperature Range: -55°C to 260°C
| Yarn Size | Nominal Diameter | Breaking Strength | Feet Per Bobbin Single End |
|---|---|---|---|
| 200 Denier | 006″ | 2.5lbs. | 15,000ft |
| 1200 Denier | 012″ | 13lbs. | 3,000ft |
