Polyester Tape A-A-52081 (Formerly Mil-T-43435 Type II)

Description:

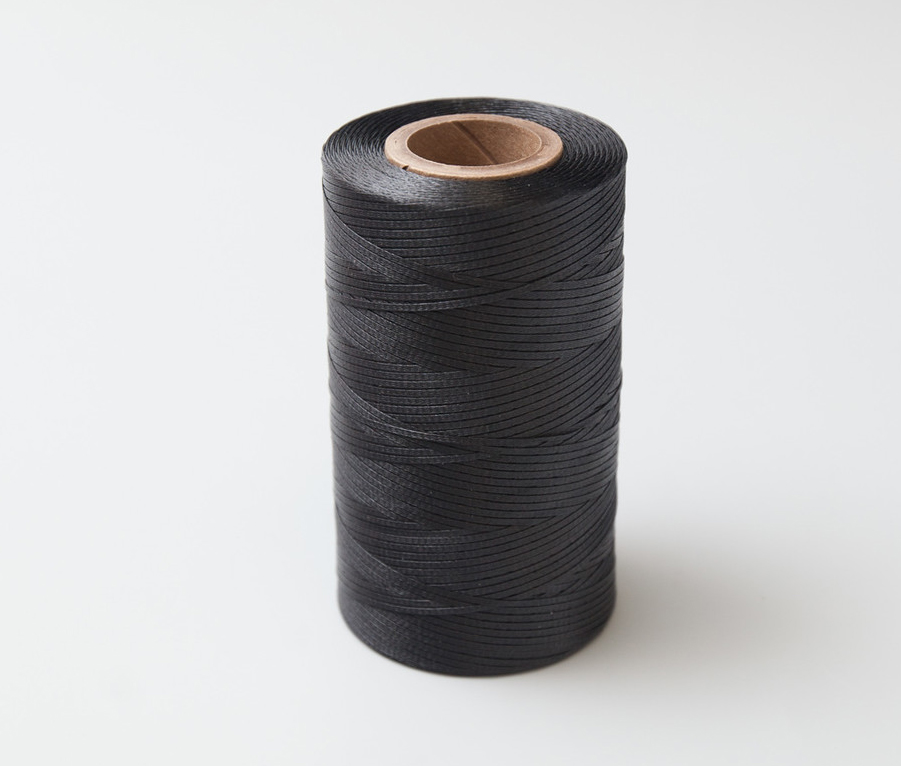

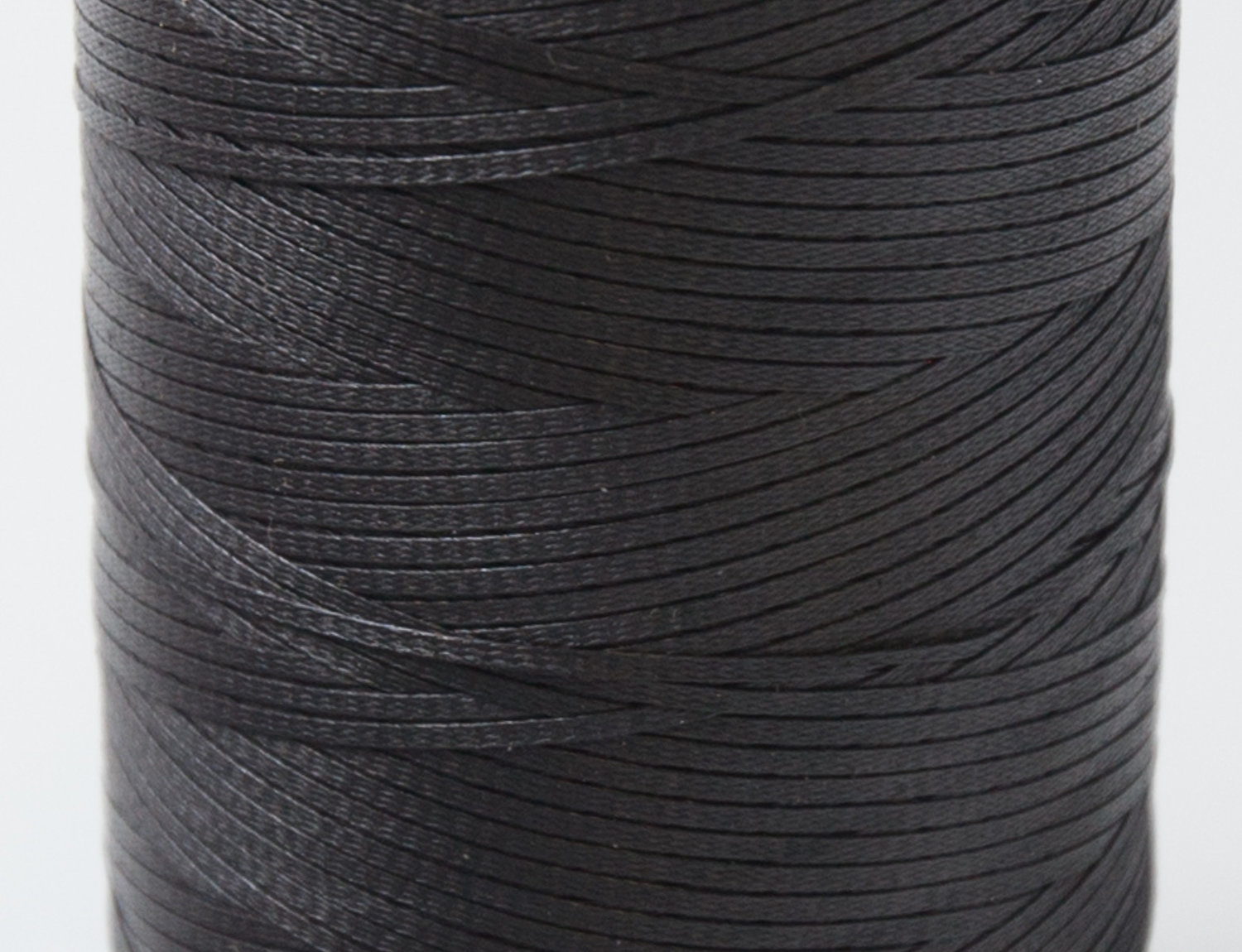

(Formerly MIL-T-43435 Type II) Flat braid manufactured from high tenacity, continuous filament polyester yarn.  Available with a variety of finishes.

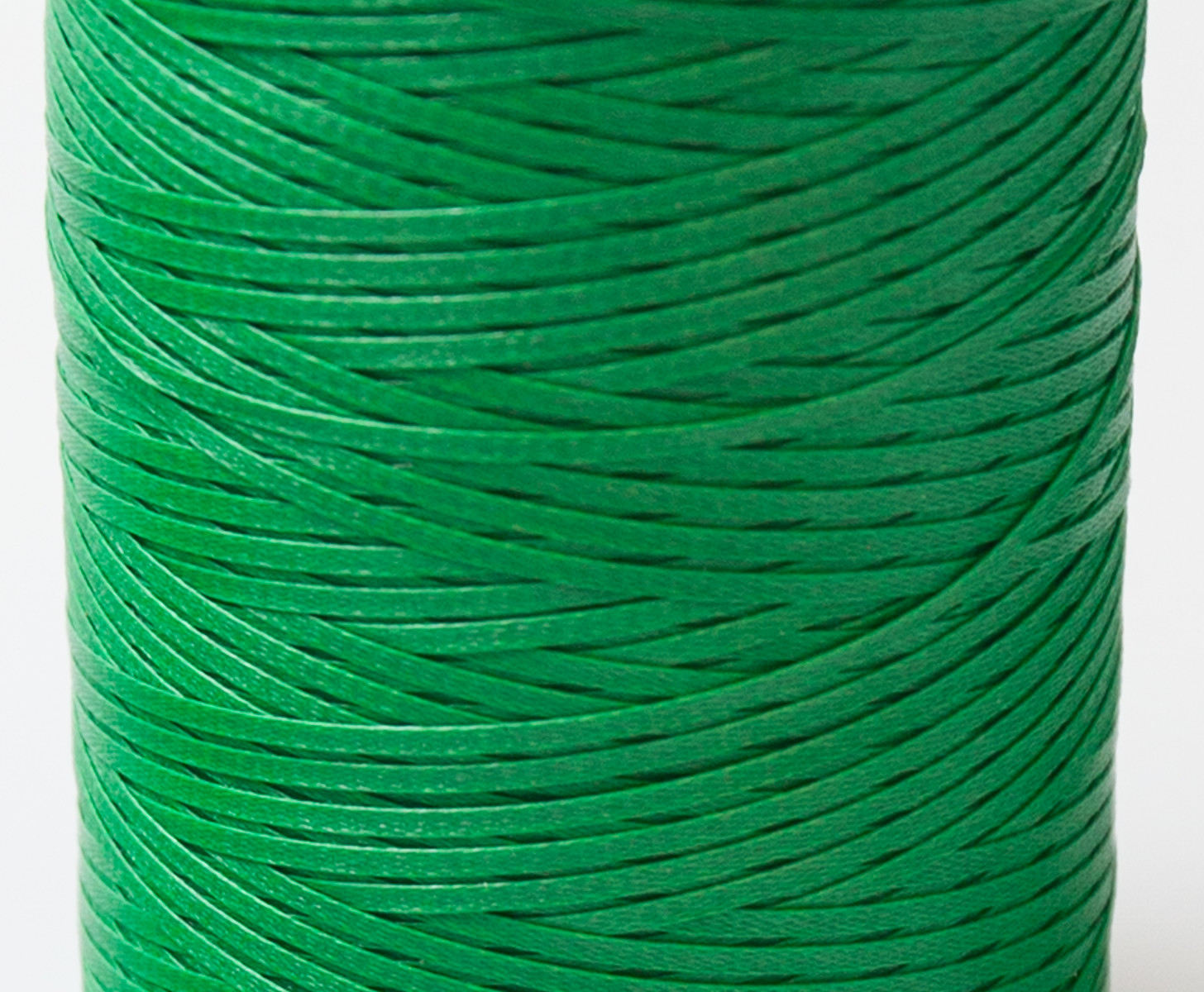

Standard Colors: Natural or Black (other colors available – minimum dye lots)

Temperature Range: -100°F to 350°F (-73°C to 177 °C)

Mil Spec Size: 1 Width .180 – .220” Thickness .013 – .018″   Spool Size: 250 yd

Mil Spec A-A-52081-A-1   201-1 No Finish A

Mil Spec A-A-52081-B-1   201-2 Microcrystalline Fungicidal Wax B

Mil Spec A-A-52081-C-1   201-3 Synthetic Rubber or Elastomer C

Mil Spec A-A-52081-E-1   201-5 Vinyl E

Mil Spec A-A-52081-C-1  201-8 Self-Extinguishing C

__________________________________________________

Mil Spec Size: 2 Width .099 – .121” Thickness .012 – .018″   Spool Size: 250 yd

Mil Spec A-A-52081-A-2    202-1 No Finish A

Mil Spec A-A-52081-B-2    202-2 Microcrystalline Fungicidal Wax  B

Mil Spec A-A-52081-C-2   202-3 Synthetic Rubber or Elastomer C

Mil Spec A-A-52081-E-2    202-5 Vinyl E

Mil Spec A-A-52081-C-2    202-8 Self Extinguishing C

__________________________________________________

Mil Spec Size: 3 Width .077 – .094″ Thickness .011 – .017″   Spool Size: 500 yd

Mil Spec A-A-52081-A-3     203-1 No Finish A

Mil Spec A-A-52081-B-3     203-2 Microcrystalline, Fungicidal Wax B

Mil Spec A-A-52081-C-3     203-3 Synthetic Rubber and Elastomer C

Mil Spec A-A-52081-E-3     203-5 Vinyl E

Mil Spec A-A-52081-C-3    203-8 Self Extinguishing C

__________________________________________________

Mil Spec Size: 4 Width .054 – .066″ Thickness .009 – .015″   Spool Size: 500 yd

Mil Spec A-A-52081-A-4   204-1 No Finish A

Mil Spec A-A-52081-B-4   204-2 Microcrystalline Fungicidal Wax B

Mil Spec A-A-52081-C-4   204-3 Synthetic Rubber or Elastomer C

Mil Spec A-A-52081-E-4  204-5 Vinyl E

Mil Spec A-A-52081-C-4   204-8 Self Extinguishing C

__________________________________________________

Mil Spec Size: 5 Width .045 – .055″ Thickness .006 – .014″   Spool Size: 500 yd

Mil Spec A-A-52081-A-5   205-1 No Finish A

Mil Spec A-A-52081-B-5   205-2 Microcrystalline Fungicidal Wax B

Mil Spec A-A-52081-C-5   205-3 Synthetic Rubber or Elastomer C

Mil Spec A-A-52081-E-5   205-5 Vinyl E

Mil Spec A-A-52081-C-5  205-8 Self Extinguishing C

__________________________________________________

Mil Spec Size: 6 Width .035 – .0.45″ Thickness .004 – .010″   Spool Size: 500 yd

206-1 No Finish A

206-2 Microcrystalline Fungicidal Wax B

206-3 Synthetic Rubber or Elastomer C

206-5 Vinyl E

206-8 Self Extinguishing C

__________________________________________________

Mil Spec Size: 7 Width .029 – .0.35″ Thickness .005 +/- .003″   Spool Size: 500 yd

207-1 No Finish A

207-2 Microcrystalline Fungicidal Wax B

207-3 Synthetic Rubber or Elastomer C

207-5 Vinyl E

207-8 Self Extinguishing C
