STX Cables

Two Ordering Options

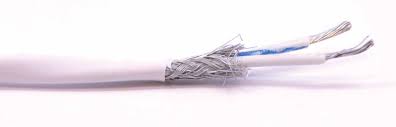

STX Cables are STJ cables that come with an extruded FEP jacket. They are general purpose cables for high temperature applications. These cables come with M16878/4 inner conductors, a silver coated copper braided shield, and an extruded FEP jacket. These cables are rated to 200C applications.

For the version of STJ cables with a PTFE wrapped jacket instead of an extruded FEP jacket, go to our STJ cables >

Search our Product Wizard for available inventory.

Part Number	No. of Cond.	AWG Size	Conductor Stranding	Nom. Insul. Thick. (in)	Nom. O.D. of Cable (in)	Approx LBS/MFT
2 COND 30E7 SHLD FEP	2	30	7/38	0.010	0.107	9.00
1 COND 24E19 SHLD FEP	1	24	19/36	0.010	0.086	7.00
2 COND 24E19 SHLD FEP	2	24	19/36	0.010	0.118	0.00
3 COND 24E19 SHLD FEP	3	24	19/36	0.010	0.127	0.00
4 COND 24E19 SHLD FEP	4	24	19/36	0.010	0.138	0.00
1 COND 22E19 SHLD FEP	1	22	19/34	0.010	0.092	0.00
2 COND 22E19 SHLD FEP	2	22	19/34	0.010	0.132	0.00
3 COND 22E19 SHLD FEP	3	22	19/34	0.010	0.138	0.00
4 COND 22E19 SHLD FEP	4	22	19/34	0.010	0.153	0.00
1 COND 20E19 SHLD FEP	1	20	19/32	0.010	0.100	11.00
2 COND 20E19 SHLD FEP	2	20	19/32	0.010	0.150	0.00
3 COND 20E19 SHLD FEP	3	20	19/32	0.010	0.156	0.00
4 COND 20E19 SHLD FEP	4	20	19/32	0.010	0.180	0.00
1 COND 18E19 SHLD FEP	1	18	19/30	0.010	0.102	0.00
2 COND 18E19 SHLD FEP	2	18	19/30	0.010	0.176	0.00
3 COND 18E19 SHLD FEP	3	18	19/30	0.010	0.187	0.00
4 COND 18E19 SHLD FEP	4	18	19/30	0.010	0.205	0.00
1 COND 16E19 SHLD FEP	1	16	19/29	0.010	0.109	0.00
2 COND 16E19 SHLD FEP	2	16	19/29	0.010	0.190	0.00
3 COND 16E19 SHLD FEP	3	16	19/29	0.010	0.202	0.00
4 COND 16E19 SHLD FEP	4	16	19/29	0.010	0.222	0.00
1 COND 14E19 SHLD FEP	1	14	19/27	0.010	0.124	0.00
2 COND 14E19 SHLD FEP	2	14	19/27	0.010	0.220	0.00
3 COND 14E19 SHLD FEP	3	14	19/27	0.010	0.235	0.00
4 COND 14E19 SHLD FEP	4	14	19/27	0.010	0.258	0.00
1 COND 12E19 SHLD FEP	1	12	19/25	0.010	0.145	0.00
2 COND 12E19 SHLD FEP	2	12	19/25	0.010	0.262	0.00
