SumiMark
Two Ordering Options
SumiMark
Our SumiMark and Sumitag portfolios offer a wide range of high performance cable identification products developed specifically for the cable assembly identification industry.

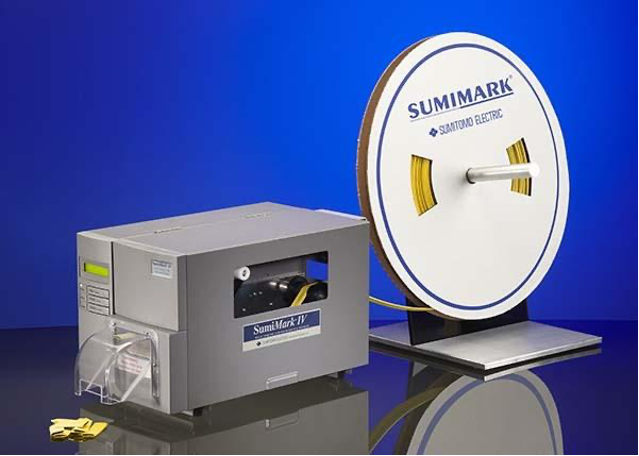

From our legendary SumiMark Marking System to high performance heat shrink sleeves and non-shrink products like panel labels and cable labels, we excel in cable identification.
Our world class Sumilabel identification software provides maximum flexibility for your cable identification requirements
| Tubing Type | Features | Specifications/Approvals | Continuous Operating Temperature | Sizes | Shrink Ratio | Available Colors |
|---|---|---|---|---|---|---|
| SM3-12 | Mil-Spec, Single Wall, Flame Retarded Heat Shrink Tubing | AS23053/5, Class 1 & 3 compliant UL recognized CSA | -55° C to +135° C | 1/16" to 2" | 2:1 | Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Purple, Gray, White |
| SM3-13 | Mil-Spec, Single Wall, Flame Retarded Heat Shrink Tubing | AS23053/5, Class 2 compliant | -55° C to +135° C | 1/16" to 2" | 2:1 | Clear |
| SM3-16 | Mil-Spec, Single Wall, Flame Retarded Heat Shrink Tubing | AS23053/1, Classes 1 & 2 compliant | -75° C to +120° C | 1/8" to 1" | 2:1 | Black |
| SM3-23 | Mil-Spec, Single Wall, Flame Retarded Heat Shrink Tubing | AS23053/5 Class 1 UL/CSA recognized 125° C 600 V (VW-1) | -55° C to +135° C | 1/16" to 1" | 3:1 | Black, Yellow, White |
| SM3-24 | Mil-Spec, Dual Wall, Flame Retarded Heat Shrink Tubing | AS23053/4 Class 2 UL 224, 125° C, 600 Volts | -55° C to +110° C | 1/8" to 1" | 2:1 | Black |
| SM3-25 | Mil-Spec, Dual Wall, Flame Retarded Heat Shrink Tubing | AS23053/4 Class 3 | -55° C to +110° C | 1/8" to 3/4" | 3:1 | Black |
| SM3-31 | Very Flexible, Highly Flame Retarded Fluoropolymer | AS23053/18 Class 3 | -55° C to +150° C | 1/8" to 1" | 2:1 | White |
| SM3-34 | Halogen Free, Flame Retarded | N/A | -30° C to +105° C | 3/32" to 2" | 2:1 | Yellow, White |
| SM3-39 | Cross-linked Medical Grade Tubing | USP Class VI | -55° C to +105° C | 1/16" to 1/2" | 2:1 | Blue |
| SM3-41 | Mil-Spec, Single Wall, Flame Retarded Heat Shrink Tubing | AS23053/5 Class 1 | -55° C to +135° C | 3/4" to 2" | 4:1 | Black, White |
| SM3-60 | Mil-Spec, High Temperature Tubing | AS23053/13 NASA SP-R0022A | -40° C to +200° C | 1/8" to 1.5" | 2:1 | Black, White |
| SM-CM | Cross-linked Polyolefin | N/A | -55° C to +135° C | 1/4" and 1/2" | N/A | Yellow, White |
